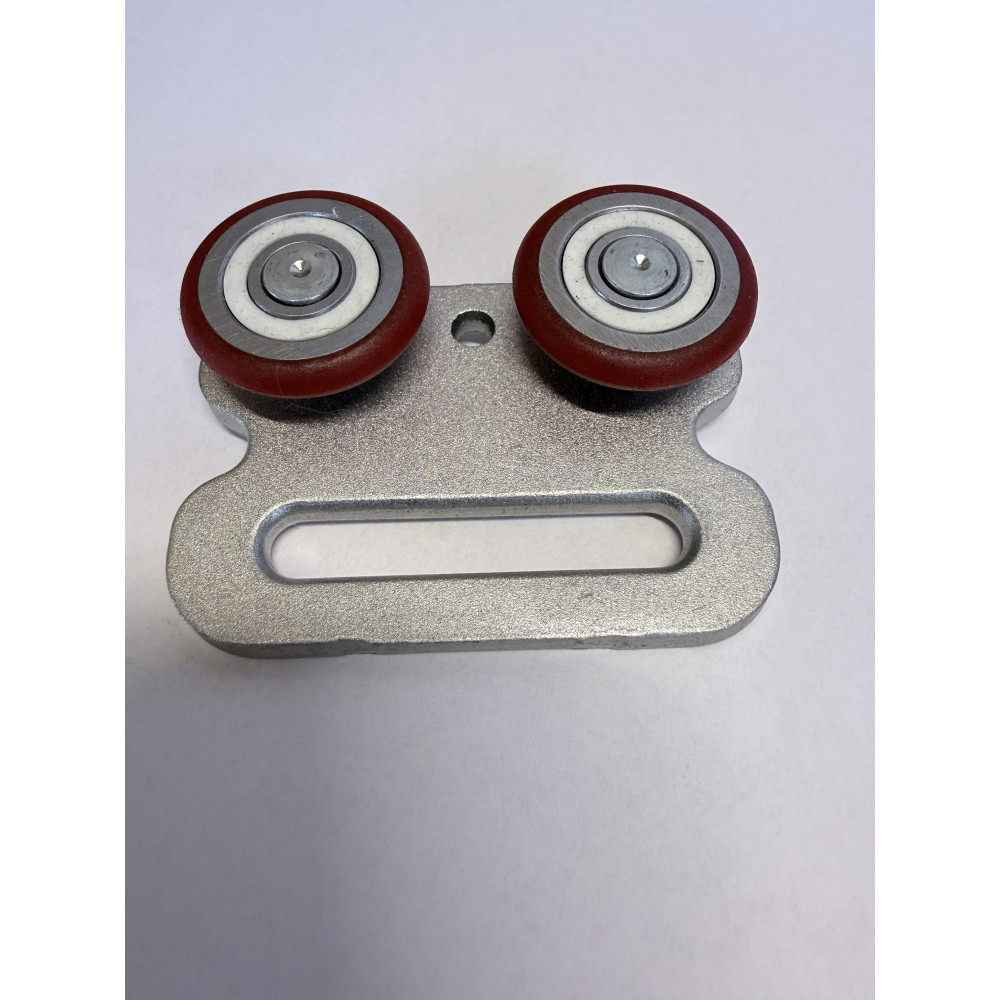

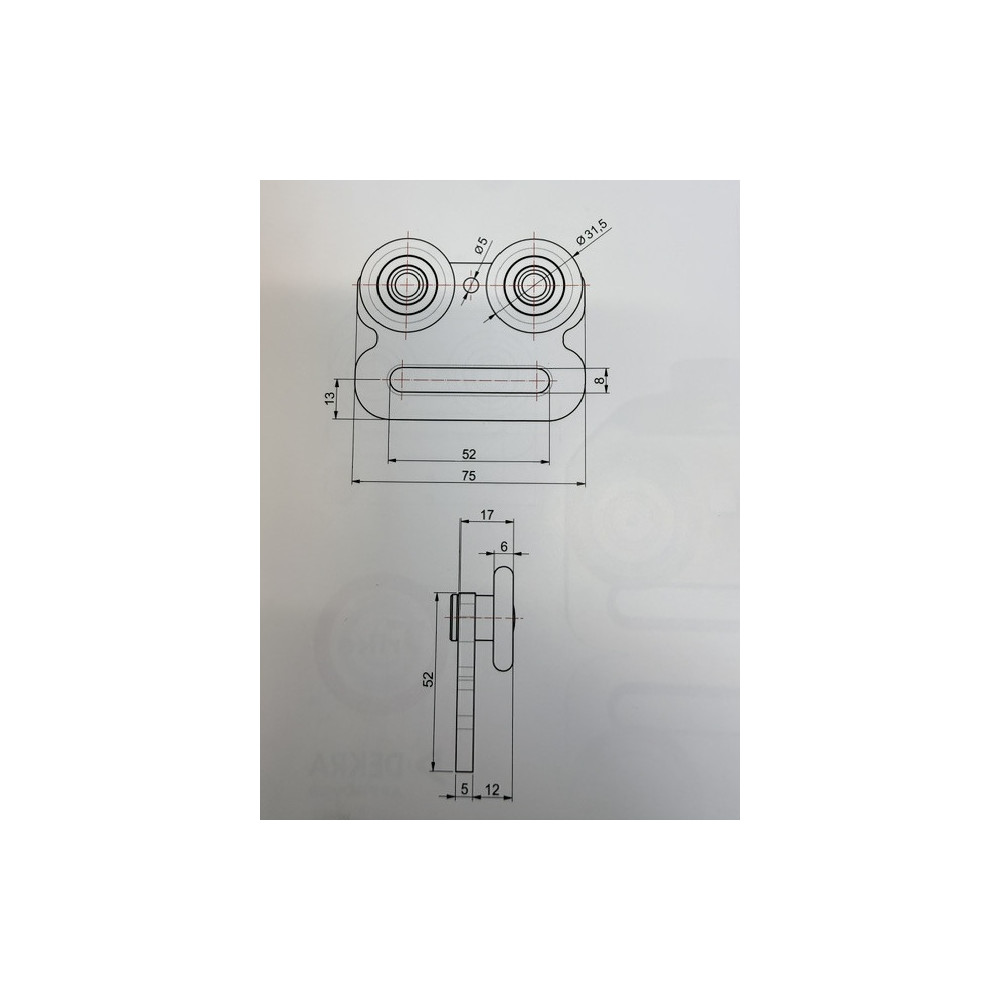

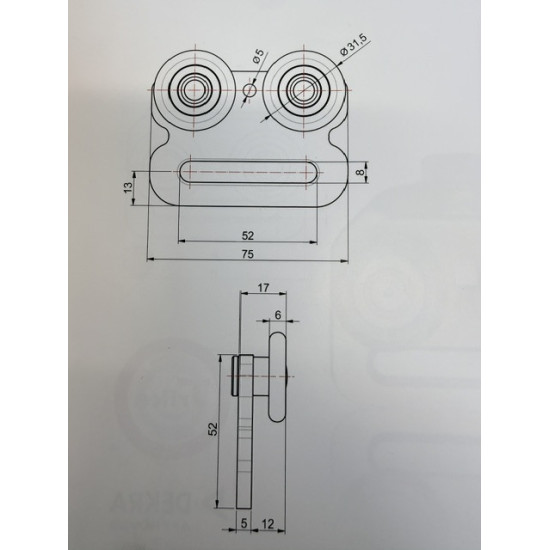

Roller/Trolley suitable for EDSCHA profiles

Back plate for attaching the buckle, 450 mm long and 250 mm wide. Hole spacing 28 mm. Made of stainless steel, complete with stainless steel nuts.

Customs approved cable end closure, 58 mm long, for cable with a diameter of 6 mm.

Frame board pocket for welding 70mm wide, used to hold metal or wooden sideboards. Mounted to frame posts.

Pad for trailer roller. Length 70 mm, width 55 mm, thickness 1.5 mm, hole spacing 28 mm.

Standard stainless steel buckle, dimensions 160 by 60mm.

Flat steel hook with black belt. Hook is made of stainless steel and the strap is 650 mm long.

Roller with beveled wheels and transport belt mount. Roller thickness 29 mm, diameter 35 mm.

Bottom profile adapter 27mm sleeve and clamp, stainless steel set

Roller made of galvanized steel with a plastic bearing, diameter 31 mm, thickness 24 mm.

Container closure, 280 mm long, made of steel, available in right, left and straight versions.

Straight roller wheel on bearings with riveted mountings. Length 120 mm, hole spacing 28 mm. Sheet metal width 30 mm, sheet metal thickness 5 mm.

Straight roller wheel with belt attachment. Width 61mm, diameter 35mm.

Straight roller wheel with rivet mountings, 128 mm long, sheet width 29.5 mm and hole spacing 28 mm.

Roller with cut wheels and rivet mountings. Roller thickness 27 mm, diameter 35 mm.

Tandem roller for curtain with rivet mountings. Length 70 mm, width 61 mm, hole diameter 8 mm. Two roll diameters available: 22 mm and 24 mm.

Roller made of galvanized steel with ball bearing. Handle length: 85 mm, hole spacing 28 mm, available in roll thicknesses 19 mm, 22 mm, 24 mm, ball bearings diameter: 19 mm.

UML floor bracket made of galvanized steel, size 92 mm x 30 mm

Tandem roller for curtain with one rivet mounting. Roller thickness 24 mm, roller diameter 24 mm.
